How Can I Reduce My Heating Bill?

If you’ve read my posts before, you know I’ve had mixed feelings about heat pumps. On the one hand, they’re great. On the other, historically, natural gas, and even heating oil, have provided heat for your home cheaper than the electricity based heat pump. But, for many reasons, especially environmental ones, my preference is to use heat pumps for primary heating and cooling.

Fossil fuels are a dead end

This last year, we’ve seen historic price increases in fossil fuels that have hit almost every household. Heating oil, natural gas and propane bills shot up, often doubling your heating bills. On top of that, automotive gas prices increased like crazy. These price spikes inflated the prices of just about everything – from fertilizer to vegetables. From avocados to sneakers. Fossil fuel prices affect almost everything.

Now is the time to add a heat pump

If you have central air conditioning, you can probably switch to a heat pump without too much difficulty.

An air conditioner and a heat pump are virtually identical. The difference is, a heat pump has an extra valve that allows the indoor air to blow cold or hot. You might have noticed that the outdoor air conditioner blows out hot air when it runs. A heat pump just switches it so that the hot air blows indoors instead of outdoors. When the air blows hot inside, the cold air blows outside. It’s the way these refrigerant based systems work. One side is hot and the other side is cold.

The great thing about heat pumps is they can be really efficient. Modern heat pumps give you three to four times as much heat out as the electrical power you put in. Think of a hair dryer. That’s considered almost 100% efficient because it converts those 1,500 electric Watts into an equivalent amount of heat. A heat pump, seemingly miraculously, can take the 1,500 Watts and convert it into the equivalent of 5,000 Watts of heat.

If you replace your air conditioner with a properly sized heat pump, you can heat your home super efficiently for most of the year without burning a drop of fossil fuels at home. You can do a heat pump retrofit if you have an existing furnace that burns oil, propane or natural gas and uses the same air handling system for air conditioning. You can continue using the furnace for the coldest parts of winter or when you need to warm your house quickly.

How much money will I save by using a heat pump?

There are a lot of details that go into answering this question. The first is: “how much does electricity cost per kilo-Watt-hour?” and “how much does my gas/oil/propane cost per gallon?”

It does get more complicated. Your local climate makes a huge difference. For example, if you live in a place where the winters are relatively mild, you can probably heat your home all year with just the heat pump and use no fossil fuels. In fact, if you live in a place like that, fossil fuel furnaces are probably relatively rare. In that climate, heat pumps are mostly a “no-brainer.”

Where it becomes trickier is where the winters are long and cold. Heat pumps will work but may struggle when it gets much colder out. In fact, the heat pump is most efficient when it’s only “cool”, like 45 degrees, F. As the temperature drops, the heat pump loses efficiency and also puts out less heat. This is exactly the opposite of what you need! But that’s the physics of it. So if you live in a climate where it’s below freezing for long periods of time, the heat pump might not be the best alternative. However, even then, a heat pump can reduce your utility bills.

During the Spring and Fall, we often start using our heating systems to take the edge off. Maybe it’s 45-60 degrees out. With a heat pump working in its optimal range, you can heat your home without using any fossil fuel. This might reduce your gas/oil/propane bills by 50% or more. Again, it depends on the cost of electricity versus the cost of your fuel.

Let’s run a few examples. Currently, home heating oil is up to about $5/gallon. That’s crazy high, so I won’t use that for comparison. Instead, I’ll use $3.20/gallon, which is about what it cost in PA during the winter of 2021/2022. Electricity here cost about $0.15/kWh when you factor in the generation and transmission costs. Some places are much cheaper, some much more expensive, so you need to adjust for your own utility costs.

At these costs, assuming typical efficiencies for furnaces and heat pumps, it would cost about half as much to heat with a heat pump, during mild weather, than using heating oil. As the temperature drops, the savings will be less, but still substantial. So, at these electricity and fuel costs, I’d say a heat pump falls into that “no-brainer” category. Every year you keep your AC and only run the oil furnace, you’re losing money. If you’re going to be in your home for more than a few more years, you could pay off the heat pump with the savings. Again, there are many factors, so you have to run your own numbers for comparison.

Now, consider what happens if oil stays at $5/gallon or goes higher for next winter. At that price, you would spend one third as much (!) on heating with a heat pump compared with oil. If you use 750 gallons of oil, the oil would cost $3,750. The electricity for the heat pump would cost only $1,250, saving you $2,500. Who knows what prices will do?

You also have to consider the “incremental costs” of upgrading to a heat pump. Suppose your air conditioner is old and you’re thinking about replacing it. It’s probably inefficient. If you replaced it with a modern heat pump, it would be cheaper for air conditioning AND you’d save money using it for heating. Since you would need to replace the AC anyway, the additional cost of the heat pump compared to a new AC unit might be small so the combination of cost savings on air conditioning and heating could pay off the additional purchase cost very quickly.

Cost comparisons for natural gas are similar. Gas prices fluctuated wildly this winter and people saw their costs double. Gas prices have since dropped a lot, but there’s no telling what will happen in the future.

I’d be remiss not to mention the price fluctuations in electricity. My own electricity costs increased about 10% this year. Others in Pennsylvania saw their electric costs double. This happened all over the country, so again, you have to do your own comparisons.

Other advantages and conclusions

There are other advantages to using a heat pump. How often do you maintain your air conditioner? Most people only call their HVAC company when they have problems. On the other hand, when you have a combustion system, you should really get it cleaned and checked at least once a year.

Safety is another important consideration. A heat pump doesn’t burn fuel, so there’s no chance of carbon monoxide poisoning. Sadly, while rare, fossil fuel systems are responsible for about 430 carbon monoxide related deaths each year, according to the CDC. They also say that about 50,000 people are hospitalized each year from accidental carbon monoxide poisoning.

If you have propane or heating oil, you have to store fuel in tanks on your property. Heat pumps use the same electricity that powers your home. No need for storage, so you never need to worry about “filling up the tanks.” Convenience with heat pumps is a big benefit.

All things considered, if you live in a mild or moderate climate, a heat pump might be a great upgrade for your air conditioning system. You can save money on your summer air conditioning and winter heating while avoiding the inconvenience and potential dangers of a fossil fuel burning system. You might even get a rebate from your electric company, as many want you to use heat pumps instead of burning fossil fuels.

What are the biggest electricity consumers in a typical home?

As a baseline, consider that typical homes in the United States consume on average 30–60 kilo-Watt-hours (kWh) of electricity per day (=900–1800 kWh per month) at a cost of $0.10-$0.20 per kWh. Those running on electric heat often double these numbers.

  • In homes with electric heat, the heater can dominate all other electric consumers. Heat pumps, while considerably more efficient (1/3 – 1/2 the consumption) than straight electric resistance heat (like an electric baseboard heater) still consume substantial amounts of electricity. Consider that a typical heat pump system uses 3kW – 6kW while running, daily consumption in cold days can easily be 30–60kWh or more. This is why home insulation and air-tightness is such an important way of conserving energy. Same is true if the home is heated with oil, gas or propane – home heating and cooling costs dominate all others, so a tight, well insulated home pays dividends year after year.
  • Electric water heater – consumption varies drastically depending on a family size and hot-water usage. But an average is about 400 kWh per month. A modern heat-pump water heater can cut this in half.
  • Refrigerator/freezer – older units were much less efficient than a modern, EnergyStar unit. A typical range is 40–80 kWh/month.
  • Lighting – with the advent of energy efficient LED lights, this has shifted considerably. A home that has the equivalent of ten, 100W bulbs running 12 hours/day uses 12kWh per day or 360kWh/month. If all those bulbs were replaced by 14W LED bulbs that put out the same amount of light, that would be reduced to 1.7kWh/day or 50kWh/month. Lighting is an area where every home can dramatically reduce consumption by replacing conventional bulbs with LED in high use locations like the kitchen and living rooms.
  • Air conditioner – central air conditioners and their blowers consume from 3–7 kilo-Watt-hours (kWh) per hour of operation.
  • Home electronics – computers, DVRs, TV, stereos all add to a home’s use and together add up to 200W-1000W/hour, every hour. Typical consumption is 4–10kWh/day or 120–300kWh/month.
  • Cooking – electric ranges and ovens consume 2kW–4kW while running and might be operated for an hour or two per day on average.

Other items that add considerably to electric bills but are less common:

  • Pool pumps – most are drastically oversized and run 12 hours a day. A typical pump uses 2500W, so that’s 30kWh/day or 900 kWh/month! Replacing that with a two-speed or variable speed pump can cut this by 75% – well worth the investment.
  • Spas/Hot tubs – outdoor hot tubs use about 6–15kWh/day, depending on usage, design and temperature, call it 10kWh on average. That’s 300kWh/month. Since many people don’t use their tubs during the winter, it pays to shut it down for the winter, saving about $50/month.
  • Ponds – ponds have become very popular in the suburbs but most people don’t realize how much they cost to run. Those waterfalls require larger pumps, consuming 500W–1000W while a basic pond filter pump might use 100W-250W. Consider an average of 500W for 24 hours is 12kWh per day or 360kWh/month.

It’s extremely educational to install a whole-house energy monitor or use an inexpensive plug-in energy monitor to see how much energy each of your devices consume. But watch out, once you do, you may turn into a true energy geek, like me 🙂

Why Doesn’t My Mini-split Heat Pump / Air Conditioner Work?

I recently had an interesting question – a reader asked what could cause a Fujitsu mini-split air conditioner to cause the air to become *more* humid. In fact, they noted that the air became highly moisture laden and the house was just yucky humid.

I really scratched my head on this one because, from a physics standpoint, under “normal” conditions, this is impossible with a mini-split. Why? Because a mini-split system has an air handler unit in the house with the only connection to the outside (and outdoor humidity) is through a small hole in the wall where the electrical and refrigerant lines run. And yet it happened.

The questioner noted that multiple units were involved and that various parts of the electronics had been changed, and yet the problem persisted. He noted that he’d heard of a number of other people with the same problem. I admit, I was baffled!

Then it came to me. In fact, I had worked with an associate, helping them to track down this exact problem. While I can’t state with 100% certainty that the problems were the same, the symptoms are the same. In addition, I realized that my own home’s systems exhibited the same issues, but I automatically made the adjustments to make the systems work properly!

Here’s what’s going on…

Continue reading

Heating Systems 101 – Learning the Lingo

She Blinded Me With Science!

One of the toughest things about researching a new heating system is learning the tech talk. Your HVAC company will throw out all sorts of terminology assuming that you understand what they’re talking about. Some might even be happy that you *don’t* understand so they can confuse you and sound like experts. Well, no more!

This post covers the most common terms that you’re likely to run across. I’m sure I’ll miss some or confuse you, so please post questions if there’s anything you’d like clarified.

Continue reading

GE GeoSpring Heat Pump Water Heater

GEH50DEEDSR _ GeoSpring™ hybrid electric water heater _ GE Appliances

Intro

In July 2014, I purchased this GE GeoSpring heat pump water heater to replace my existing all-electric water that had sprung a leak. Admittdely, it was an impulse buy because Lowes was having a sale on them – probably to get rid of unwanted inventory because these have horrible reviews!

So why did I buy it? Because it was only a few hundred dollars more than a conventional electric water heater and I’d been wanting to get an integrated HPWH after my previous add-on HPWH died after just a year. Plus, based on the negative reviews, I felt that the people having problems were using earlier versions of the heater. So I’m crossing my fingers and hoping that it has a long, happy life.

Almost everything written in this article applies to all heat-pump water heaters. I’ll put the GE specific notes at the end.

What is a heat-pump water heater?

You may not know it but your refrigerator and air conditioner are examples of heat pumps. Through a process of compression, condensation and evaporation, they move heat from one place to another. In your refrigerator, that humming you hear when it runs is the compressor. The inside of the fridge is cold because the “heat” in the fridge is moved to the outside of the insulated box and blown into your kitchen. An air conditioner works exactly the same way – it cools the air inside the house and expels the heat outside.

The HPWH does the same thing except it uses the heat to warm the water in the tank. And the cold? If you feel the output behind the heater, you’ll see that the cold gets blown into the room. Heat the water, chill the room. Keep this in mind, we’ll come back to that later.

Why does a heat-pump water heater save energy?

Continue reading

DIY Energy Audit, Part 2: Why Do Heat Pumps (sometimes) Cost a Fortune to Run?

After the first article, Matt collected his utility bills and other background information we need to get started. Here it is:

“Colonial 3,300 square feet. 3 adults one child. 2 Electric Heat Pumps: Large one in basement is Payne, Model Number PF1MNB048; Smaller one in mud room for rooms above garage has no name. Just has large number SA11694 and Model Number BCS2M18C00NA1P-1. Thermostat at 72 now and 70 in summer. Consumption Feb 2013 through Jan 2014 – kWh 5800, 4530, 2815, 1684, 1533, 2346, 1334, 1568, 1719, 3023, 5833, 7349”

I don’t even have to make a spreadsheet for this one!

What this tells us

We have a small-medium family in an average sized development home – no red-flags there.

However, the next items contain the keys to solving this mystery.

Continue reading

5 Things to consider when replacing your heating system

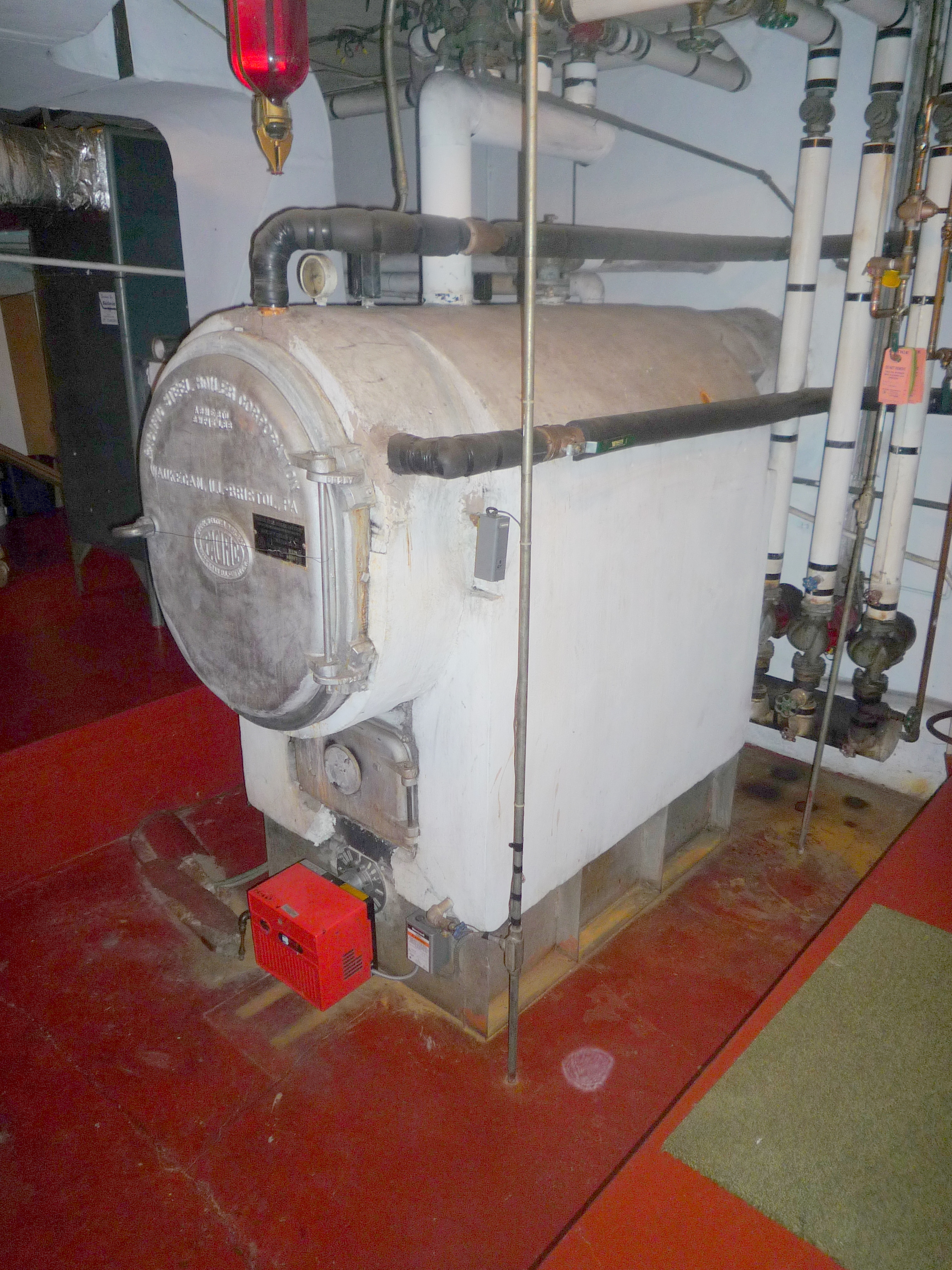

A big old boiler

#1: Research replacement systems before your current system dies

Hopefully, you’re reading this before you need to replace your heating system. Other than buying a car, a new heating system is likely to be the biggest single item you’ll purchase for your home. And just like a car, you want to do your research before plunking down the the ten grand on something you’ll be living with for years.

Unfortunately, most people wait until their heating system dies – usually in the dead of winter. What ensues is an emergency phone-call to your “heating guy” who will either replace your system with exactly the same, inefficient, old unit you already have or whatever he’s got on the truck, most likely the latter.

You wouldn’t buy a car this way, would you? You wouldn’t call your car dealership and say “my car broke down, sell me what you’ve got. Maybe give me a few options for different cars.”

Continue reading

Understanding and Evaluating Heat Pumps

Heat pumps are a bit of magic. But you use one in your home every day – your refrigerator. So if you can accept that your fridge works, somehow making 0 degree air from the 70 degree air in your home, plus some compressor action, then you should be able to accept that heat pumps can produce 95 degree air to heat your home while it’s 25 degrees outside.

I’m not going to subject you to a full lesson on thermodynamics and the refrigeration cycle. Instead, I just want you to accept the fact that heat pumps work on the same principles as refrigerators and air conditioners – they move energy from one place to another. In the process, they make one side of the system hotter and the other side colder.

Heat pumps, refrigerators and air conditioners all work the same way – they move heat from one place to another, amplifying the effect using a compressor and refrigerants.

Continue reading

The Energy Geek Video 3: Ultra Efficient Heat Pump Review

I bumped this back up to top of the list since it’s one of the most popular posts I’ve ever done. I also just had the misfortune of losing ALL THREE indoor units during a recent storm and power surge that killed appliances all around my development. Argh! However, they’re up and running again, good as new.

I love these heat pumps! There’s one in the bedroom, one in the basement “party room” and one in the large, living room that’s full of windows – a space that has been uncomfortable for years.

After installing these systems, I don’t know how we dealt without them before. The summer comfort is waaay better than ever. And in our basement room, I turned off the main heating system and used the Fujitsu exclusively all winter.

Keep in mind that this is one special little unit. There are many mini-split systems on the market that look like this, but most of them are barely half as efficient as this one. They’re just not in the same league.

Continue reading

Q&A – Should I get a high efficiency heat pump?

A friend dropped me this email yesterday, asking for some advice (slightly edited):

We spent a lot on oil last winter.  We have a 23 year old heat pump which gives us A/C in the summer, but no heat any longer.  I had a proposal from the installer for a new 14.5 seer heat pump replacement.
Here is the question: how much more efficient will that unit be compared to our old unit?  We are not convinced that it is worth the cost, so we thought you might give us a ball park estimate of potential savings.  Bottom line is enough: does this sound like a good decision?

This is such a great question, that I wanted to share it, and my answer, with the rest of you.

Let’s start with the basics – what is a heat pump?

Continue reading
