If you’re building a new house or redoing the exterior of your existing home, do yourself a favor and watch this excellent video on exterior insulation. It could save you huge amounts of heartaches and money.
Someone asked me this question, and I live this reality every day. Let’s look at what’s involved!
Each room in the house has its own thermal loss and gain. To simplify, this is directly related to the difference between the indoor and outdoor temperatures. This is mostly true but other effects like sun shining, people, electronic devices etc. all affect the equation. But for now, think of each room as a thermally insulated box losing a certain amount of energy over time when it’s cold out (this discussion applies to air conditioning also, just in reverse).Continue reading
I recently received this question on Quora and decided to share the answer with readers there as well as on TedsTips. I hope this will save some of you from heartbreak after your winter vacation!
A primary consideration in cold climates is pipes freezing. It is very important to realize that pipes can freeze even if the home temperature is above freezing due to the locations of the pipes. I once owned a townhouse where the pipes would freeze when the outside temperatures dipped into the single digits outside, even though we were warm inside the house. How? The pipes ran up through an inside wall, across the ceiling and over to an outside wall spigot. The inside wall, at the top, opened to the cold attic, so that cold air would get into the wall cavity and freeze the pipes. This was fixed by air sealing the top of that wall cavity, but required considerable detective work to figure out. The pipes running through the outer wall down to the spigot would freeze near the spigot where the pipes were exposed to cold temperature, so this run had to be isolated from the rest of the house plumbing and drained during the winter.
These are two examples, that show potential issues that are made worse by turning down the temperature while you are away. Imagine the situation where the pipes don’t freeze when the house is occupied and the walls are warm enough to keep the pipes from freezing. Now, imagine reducing the indoor temperature, maybe only a few degrees, but enough that the cold from the outside overwhelms the meager heat coming from the house that is able to reach the pipes. This has bitten many a homeowner during winter absences.
Unfortunately, there is really no way of knowing if this will happen until it happens. This is why it is critical that you turn off the main water valve for the water supply to your spigots in your house when you travel*. The pipes may still burst, but at least your house won’t flood. When you return after winter and turn the water back on, you’ll know quickly that there’s a leak and can turn off the water and fix the leak before catastrophic damage is done. This is no exaggeration – I was called into a home that was literally FILLED with mold and had to be gutted. A pipe had burst and the owner returned after a month to find the house completely flooded.
*I was reminded (see comment below article) that you MUST NOT turn off the make-up water supply if you have a boiler for heating your home. This is very important. Boilers need available water to maintain system pressure in your radiators etc. Without make-up water, the pressure in the system can drop and the system will stop functioning.
If you plan on leaving your home for an extended period, it is always a good idea to have your HVAC company give the heating system a once-over to ensure that it is in good working order. While there, they can advise you on which water valve you can safely turn off and which you should not touch. It would be advisable to label all the valves for future reference.
Flooding is the most damaging effect, but there’s another, more insidious issue that can arise during winter house shutdowns – condensation damage and mold.
In order to understand this, I have to touch on the physics of condensation. Condensation is the conversion of water vapor to liquid water that occurs at or below what is called the “dew point.” At normal temperatures (say 70F), condensation rarely occurs during the winter because the home humidity level is modest and most of the inside of the home is above the dew point. However, even with typical indoor humidity levels, you can experience condensation on windows, because windows get much colder than the insulated walls of the house. You might have noticed this if you have curtains or insulating blinds. These help keep your room warmer but allow the windows to get even colder because they intentionally reduce the windows sapping heat from the room. When you open the curtains, you might find the windows soaking wet from all the condensation. Worse, the wood around the window, especially at the bottom edge, might be saturated with water.
Under normal circumstances, you would see this in the morning and could dry off the wood and allow it to warm up when you open the curtains. But when you are away, even if you don’t turn down the thermostat, the water will remain and can get worse every day. Over time, this will likely lead to mold growth and if allowed long enough will rot out the wood. For this reason, I highly recommend that people leave their curtains and insulating shades “UP” or “OPEN” when they are away for extended periods. You want to minimize the chance of condensation buildup and the associated potential for mold and wood rot.

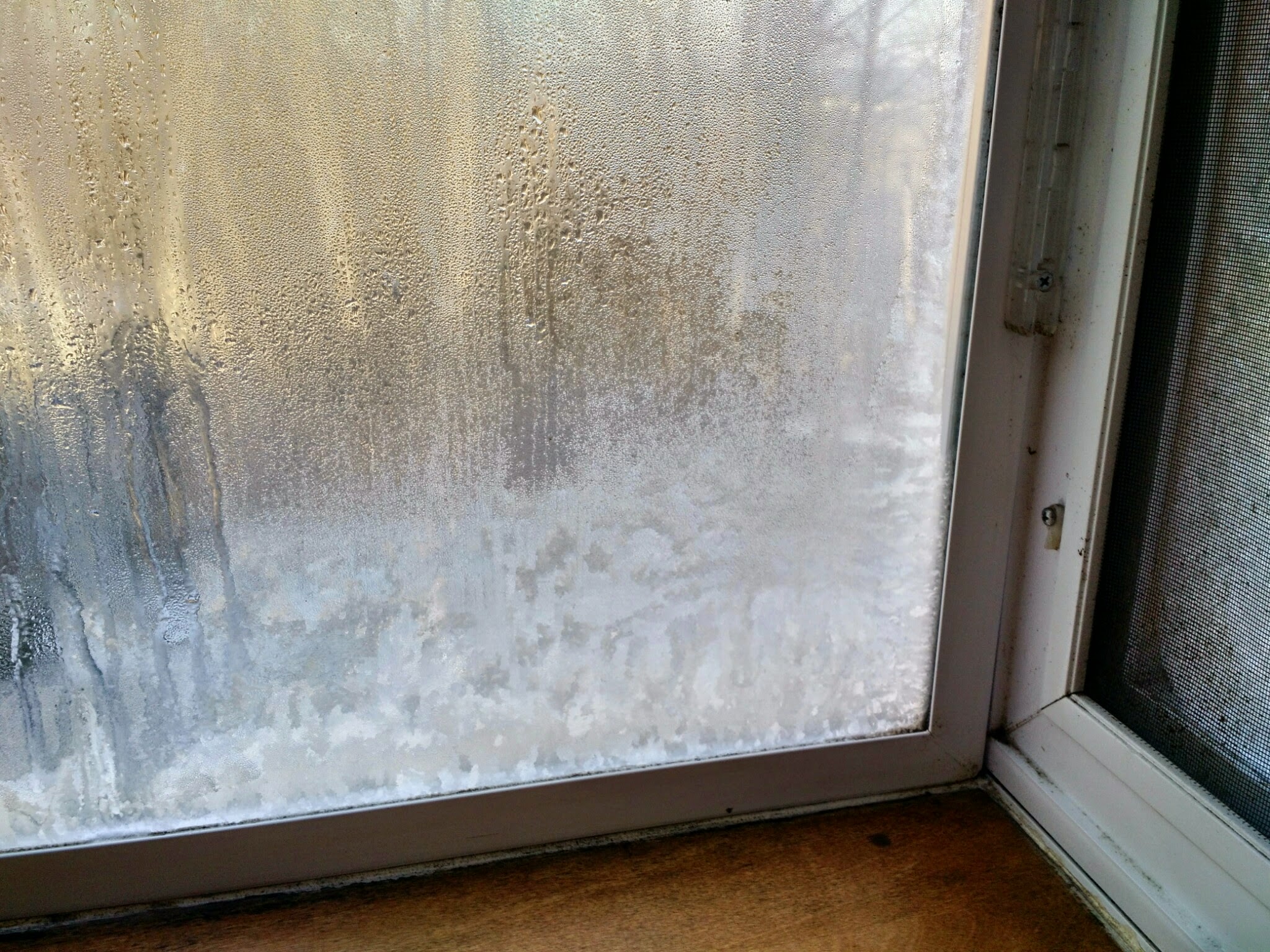

Let’s continue this thought experiment. If you turn down the thermostat enough, the inner surfaces of your house (walls etc.) can get to a temperature below the dew point and, just like those windows, the water vapor in the air can condense on those surfaces. Many people have made this mistake and come home to a horrible, moldy mess! For this reason, it is extremely important to do two things:
1 – do not turn down the heat excessively. It’s impossible to tell exactly what temperature is too low, but in most climates, people find 55F-60F is safest.
2 – make sure you don’t add any moisture to the air while you are gone. This can be disastrous. For example, many homes have central humidifiers built right into the heaters. If you leave this one it raises the humidity level inside the house every time the furnace runs, likely leading to moisture problems. Turn off all humidifiers before you leave!
Even if you don’t have humidifiers, natural ground moisture can seep into the house through the basement, crawlspaces, etc. This is especially common in homes with dirt floors underneath. Water vapor rises up into the house, driving up the humidity. If you live in such a home, it is really important that you monitor the humidity levels in the home to ensure that they are not too high. During winter, indoor humidity levels will naturally be low, typically less than 50% relative humidity. Humidity levels above 70% are considered too high as they promote mold growth. Get yourself a humidity monitor (they’re cheap on Amazon) and see what humidity levels are. Or better yet, get an Internet smart thermostat.

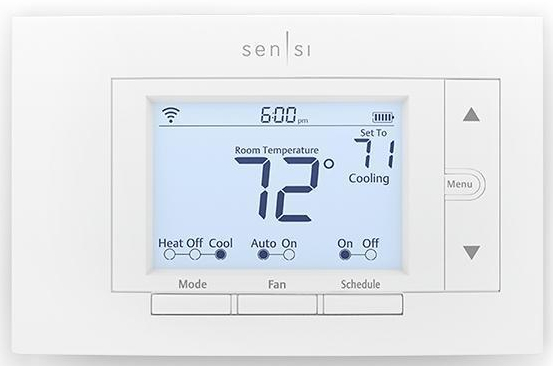

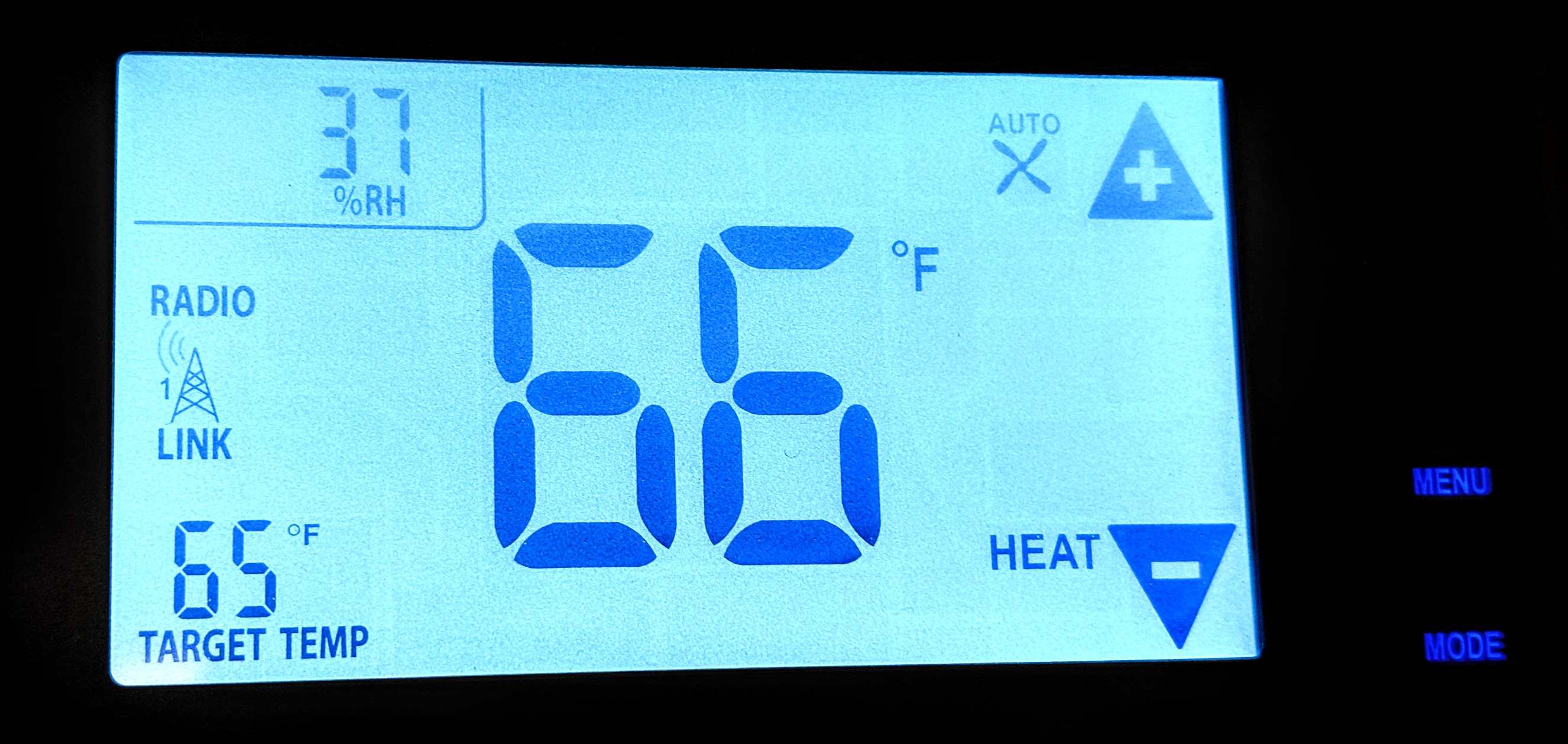

These let you to monitor indoor temperature and humidity levels while you are gone. These are affordable nowadays, and can give you tremendous peace of mind. A quick daily check on temperature and humidity gives you a read on the health of your home. It’s not a guarantee, as you still might have condensation problems, but at least you can be sure that the general climate inside your home is reasonable. It will also tell you that your heating system is working. If the temperature suddenly drops to 45 even though your thermostat is set to 55, you know there’s a problem and can call in help.
Have a wonderful winter. Hopefully you will avoid the main pitfalls that have hit too many other people. A few easy steps can greatly improve your odds of coming back to a healthy home!
In the first article of this series, I discussed a lot of the theory behind attic insulation that you should know before taking on your insulation project. If you haven’t read it, please, click the link and do your best to understand the basics before proceeding.
Condensation – killing houses slowly but surely
This winter, most of the questions I’ve received have been about moisture buildup in attics or cathedral ceilings. And all have the same answer – humid air from the house is rising up through all the little cracks and holes in your ceiling. Once it gets into the attic space (or the space between the roof and the ceiling of a cathedral ceiling), the air cools rapidly and the water held in the air condenses on to a near-by cold surface – usually the underside of the roof or the roofing nails.
Once this happens, the water drips into your insulation or soaks into the roof sheathing. If this happens once and dries out, it’s no big problem. But during the course of the winter, this happens again and again, and before you know it, it’s raining inside the house as water leaks through holes in the ceiling.
There’s a saying – “there’s no such thing as a small water problem.” But often people will try to put a band-aid on them. Unfortunately, every day a water problem is neglected, is another day closer to serious structural problems and tens of thousands of dollars of repairs. So it is in your best interest to deal with water problems as seriously as if your house was on fire. Deal with it today, or you’ll be really sorry tomorrow.
What a moisture problem looks like

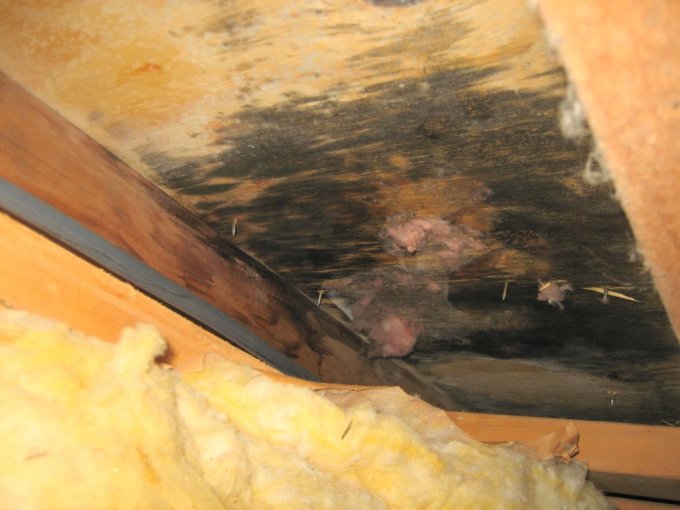

Let’s look at the underside of a roof that has experience this repeated wetting from condensation:
The first thing knowledgeable people ask is: “will adding more ventilation eliminate the problem?”
We’ve all been told that you have to have air flowing through the channels, from the eaves (soffit vents) up to the peak (ridge vent) in order to flush out the moisture. But this is only part of the story and it doesn’t guarantee anything. In some cases, it makes the problems worse.

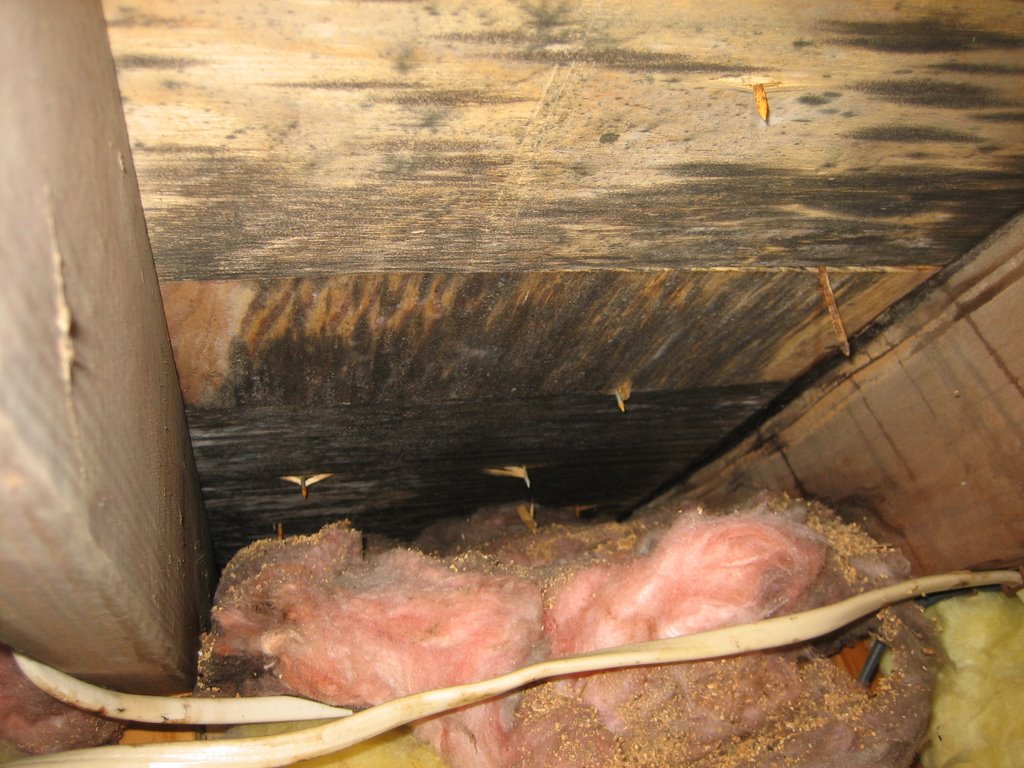

The purpose of insulation in winter is to slow the heat loss from the house and out the roof. Take a look at the photo at the top of this article. Half the roof has snow, the other half does not. The half where the snow has melted is a clear sign of heat loss from the house. The heat warms the roof sheathing and melts the snow.
Recall what you know about condensation – condensation occurs when moisture in the air comes in contact with a cold surface. The roof is above the insulation, so it’s supposed to be cold. If it were warm (like the right half of the photo of snow), then condensation would be less likely. The situation is a Catch-22 – good insulation equals cold roof. Cold roof plus humid air equals condensation. Ugh!
Given these conflicting issues, what do you do?
Preventing moisture problems in attics and cathedral ceilings
The answer is simple – reduce the amount of humid air that can come in contact with the cold roof.
In the winter, almost all the moisture comes from inside the house. It rises up, along with the warm air, finds every tiny crack in the ceiling, and gets up into the attic or inside the cavity under a cathedral ceiling.
Step 1: reduce moisture in the house
The first thing you want to do is reduce the amount of water getting into the air from inside the house.
Ventilate when showering
The most common source of large amounts of moisture is the shower. When you shower, you create a “worst case” scenario – hot water saturates the air. That “super saturated” air will immediately dump the humidity onto any cooler surface it touches.
When you shower, you must run the bath fan during and after your shower until the all the excess moisture in the bathroom is flushed out. Usually, this means allowing the bath fan to run for approximately 30 minutes after you shower.
If you have a door on the bathroom, keep it closed until all the moisture is flushed out. Never shower with the bathroom door open because the moisture will flow out into other areas of the house that are not designed to eliminate the moisture.
Bath fan tips:
- Ensure the fan actually works. Put a piece of paper under the fan. It should suck strongly to the fan’s intake. If it does not, then the fan may be improperly vented.
- Check the fan installation. Pull down the grill under the fan and look for gaps between the ceiling and the fan. Use canned foam to seal these gaps.
- Make sure the fan vents through the roof. Venting the fan into the attic is common and exceedly stupid as it virtually guarantees a rotten roof. The duct from the fan should be as short as possible and go straight up through the roof. Your fan is worthless if the duct runs 50 feet across the the attic then lays on the soffit.
- Install a humidistat that automatically runs the fan based on humidity levels. There are even bath fans with humidistats built in now but I prefer separate switches with humidistats like the one linked to above or this one. Why? Because you are less likely to forget to turn it on. The humidistat is wired in parallel with the normal switch so either one can activate the fan.
Ensure the dryer vents outside
Far too often, dryer vents take long paths to get outside. This leads to inefficient or even dangerous operation. If your dryer takes forever to dry clothes, chances are good that it’s not venting effectively.
Don’t even think about getting a dryer “heat reclamation” device. These pump gallons of humid hot air into your home, greatly increasing your odds of mold and roof rot.
Turn off humidifiers
If you have moisture problems and you use a humidifier, stop using the humidifier. Humidifiers can dump gallons of water into the air every day. Central humidifiers are especially bad because they use the homes leaky ductwork to spread the moisture.
If you absolutely must use a humidifier, use it only in the room where you sleep and turn it off when you’re not using it.
Keep in mind that the primary reason you need a humidifier is because your house is leaking in cold, dry air. The need for a humidifier is a clear sign that your house is inefficient and you could save a lot of money and be much more comfortable by tightening your home. I know – when I moved into my home, our lips and skin cracked, our noses bled and we were really uncomfortable. We had to use humidifier round the clock to be comfortable. After replacing our old windows and air sealing the house, we haven’t had to use the humidifiers once.
Ventilate when cooking
If you cook on the stove a lot, make sure you use an outdoor venting range hood. This is especially important if you have a gas stove or oven because these generate carbon monoxide and water vapor.
Conservatively water plants
Much of that water you use to water plants ends up inside the house.
Avoid “ventless” gas fireplaces
These should be outlawed. Ventless gas fireplaces generate tons of water vapor and, if not running cleanly, carbon monoxide, which can kill you. No matter what Bob Villa might say, these units should never be installed or used. It’s physics. A byproduct of combustion is water and carbon dioxide. And if the combustion isn’t *perfect*, you also get carbon monoxide.
Look for hidden water sources
Basements and crawlspaces
If you have a crawl space or damp basement, this could lead to huge amounts of moisture entering your home. Many articles have been written on this topic. For now, be aware of this and check your basement and deal with any moisture problems under the house. If you don’t there’s a good chance you’ll end up with attic/roof moisture problems.
Indoor ponds and fountains
Any other place water is used in the house
Step 2: Air seal the ceiling between the living space and the insulated attic/cathedral ceiling

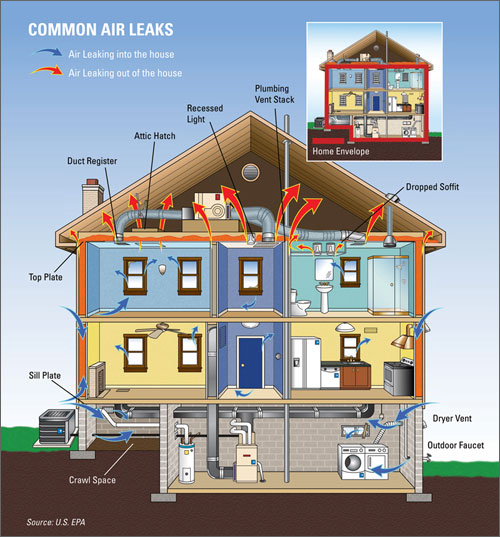

I’ll save myself 1000 words – refer to this excellent diagram and ensure that your home has an airtight seal between the living space and the attic or the inside of your cathedral ceiling.
Avoid traditional recessed light fixtures!
If you’re considering (or already have) recessed light fixtures, use air tight LED fixtures. The manufacturers completely lie when they label traditional fixtures as ICAT (insulation contact, air tight). I dare you – turn one of these fixtures upside down and fill them with water. Water will rush through all the holes in the fixture. Now picture your ceiling during the winter – air flows right through the fixture, carrying moisture up into your attic or ceiling. You are virtually guaranteed roof rot if you have a ceiling filled with recessed lights.

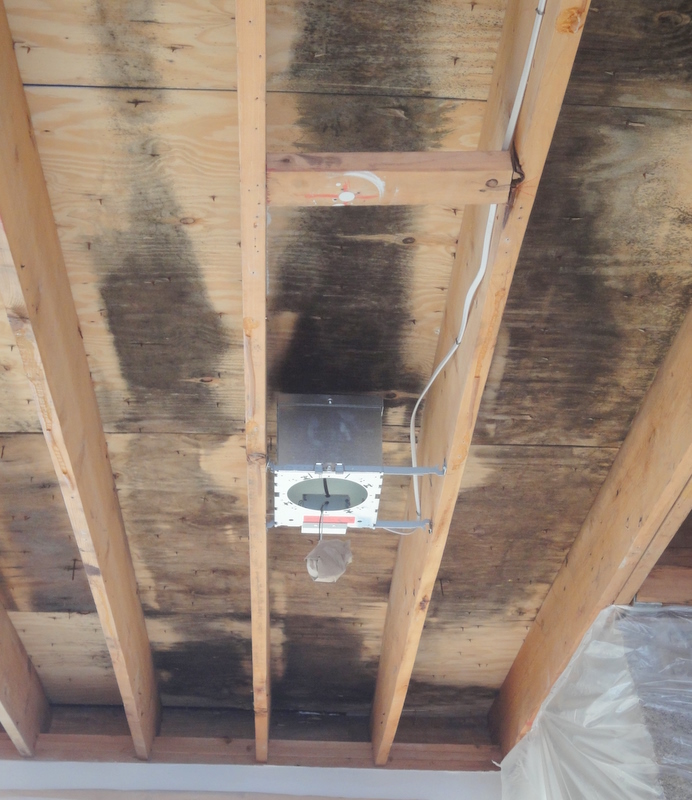

Don’t believe me? remember this photo from earlier? This builder swore up and down that he did everything right and the roof was still rotting. Why? Because he installed about 20 of these fixtures in the ceiling. You can’t argue with physics.
Fortunately, you can cut your energy usage in quarter, never have to change a bulb again, and eliminate the moisture infiltration problem by using flush-mount LED lights like these. You can also retrofit existing recessed light fixtures using these types of lights.
One word of advice – use a thin bead of caulk around the lip of the fixture to seal it to your ceiling. This is the only way to ensure an air-tight seal. Yes, it will be a pain in the butt to remove later, but these things are rated to last 36,000 hours. That’s 4-years of continuous use so 10-20 years in real use. LEDs often last much longer.
Seal all duct registers and especially bath fans
I have never seen a bath fan that’s properly air sealed, and they’re in the most critical location in the house. The installer will cut a hole about 1″ larger than the fan then cover up this big gap with the fan’s grill. Out of sight, out of mind.
All that humid air from your showers will go right up through these gaps and into your attic. This is the place you should start with your air sealing because it’s so easy and so effective.
After that, if you have heating/air conditioning vents in the ceiling between the living space and attic, remove the grills (called “registers” in industry lingo for some reason). These are installed the same way as bath fans. Big holes. Sloppy installation. You can use spray foam or caulk to seal the gaps. Or, use this incredible tape, called “foil mastic.” Clean off the sheet metal of the duct “boot” (that’s the metal thing the duct is attached to that screws to your ceiling). And use this tape to seal all around the perimeter where the boot attaches to the ceiling. Be careful to measure it so that it doesn’t show outside the register before sticking it to the ceiling because once it sticks, it’s on there for good!
Cover the attic hatch
Attic hatches are responsible for a huge amount of energy loss and the associated moisture damage in attics. Make sure yours is air-tight (which is almost none except for these Rainbow attic stairs). These are the best I’ve ever seen and worth the money.
For the other 99% of you who already have attic stairs, install the ESS Energy attic stair hatch. This thing is awesome. Or, you can build your own out of foam-board. But seriously, the ESS Energy system is so much better than the other solutions out there that’s it’s worth it.
Get a blower door test before and after air sealing
The best way to go about air sealing is to have an energy auditor come and do an infrared inspection with blower door test before and after the project. You do it before the air sealing to locate the air leaks so you can prioritize the work. You do it after to ensure the work was done right!
When I did these inspections on a daily basis, I found that the combination of blower door test and infrared thermography was the only reliable way of finding the problems. Some folks will say they can find all the problems without the right tools, but, frankly, they’re misguided. I don’t care if you’ve been doing this for 50 years, your eyes are not going to find hidden problems.
Let me give you an example. Suppose you go to the doctor. You’re not feeling well. Strange pains in your abdomen. If the doctor prodded you a couple times, told you “it’s nothing, you’ve got gas” then said “I don’t need to use a newfangled MRI machine” – would you trust your life to them?
For a few hundred bucks, are you going to trust someone’s eyes or a proven tool?
Ready? Insulate your attic!
After you’ve reduced humidity problems in your home, then air-sealed the ceiling between the living space and the attic/cathedral ceiling, then you can insulate.
How should you insulate? Honestly, if you’ve done your prep work properly, you can use cellulose, spray foam, fiberglass, recycled denim or horse hair and your home will be relatively well insulated and energy efficient.
Obviously there are differences, but it should be clear that the prep work for insulation is key. Even the best insulation product can have issues if you don’t air seal and reduce humidity.
Some guidelines for insulation in colder climates
I have to start by saying this is all for winter insulation. Hot, humid climates have their own rules which are often reversed from cold climates.
Moisture barriers go towards the warm, inside of the house
In winter, the moisture barrier should be the first thing beyond the ceiling material. You absolutely don’t want to trap moisture on the cold side of the insulation.
Refer to your local building code for the use of moisture barriers. Many jurisdictions are changing their approach to moisture barriers.
Like I said, the specific insulation product usually doesn’t matter if everything to this point has been done right. The main differences between products are price, R-value per inch of thickness and convenience of use. These can be significant differences and you have to determine what works best for your own home.
Some things they should tell you about insulation but often don’t
- Blown in products are messy. Cellulose or fiberglass blown in to an attic basically renders the attic useless for other purposes. If you think you’ll never go into the attic, then great, blow in a couple feet of cellulose and be done with it. But if you have heating/cooling equipment up there or you want to use the storage space, you will hate the decision. Trust me. I want to kill my insulation installer for blowing cellulose in my attic after I told them I didn’t want it.
- If you’re doing it yourself, consider recycled denim like UltraTouch. This insulation doesn’t leave you itchy. It’s dense and fits into the cavities securely. I did my parent’s attic with it and it was wonderful to work with. The downside is that it’s pricey and hard to cut. But it’s really good stuff. Well worth looking into for a DIY project.
If you’re installing insulation directly under the roof, like in a cathedral ceiling or attic ceiling, make sure to leave about a 2″ gap between the insulation and the roof sheathing. If you don’t, there’s a good chance your roof will end up like this.
- If you install insulation directly under the roof, you have to air seal underneath of it, like with an airtight sealing. In the attic, you can install rigid foam board to the rafters and essentially create a cathedral ceiling in there.
- There are different types of spray foam. Open cell, which is like what couch cushions are made of, and closed cell, which is rock-hard. They have different characteristics that you need to research in order to make a good decision about their use.
- You do not want to install insulation on the attic floor and under the roof. This is a case of “more is worse.” The insulation on the attic floor will make the attic cold, and the insulation above can trap the moisture in the attic, leading to moisture problems if the attic space isn’t ventilated. But if you ventilate the attic, then the insulation under the roof is doing nothing. Don’t do it! Choose one location – either the floor or the ceiling and insulate it properly.
- If you insulate and air seal the attic floor, then ventilate the main attic space according to code. No matter how good your air sealing, moisture will enter the attic from the living space. If this is trapped in the cold attic, you can rot your roof. So the attic has to be ventilated. Personally, I’ve seen gable vents work fine in homes but it’s all the rage to use soffit and ridge vents. Whatever. Just ventilate the space well to flush out moisture.
- If you insulate under the roof, be sure to air seal under the insulation just as well as you would the ceiling of your home. The attic becomes part of the living space when you insulate under the roof. Treat it as such. Fail to do so? See photo above.
Ok, that’s enough. My fingers are tired from typing all morning. If you’ve read half of this and gotten this far, you should have most of the information you need to create a comfortable, efficient home that will last for decades.
One of the hottest topics in energy efficiency and building science is “how should you insulate your attic?” Why? Simply put, the attic has more impact on your efficiency and comfort than any other single part of your home!
Let’s summarize why the attic is so important:
- The attic is the hottest part of the house in the summer and is cold in the winter
- Hot air rises up to the attic / cold falls drops into the living space
- Moisture rises and accumulates in the attic
- Central heating/AC systems and ductwork are often in the attic
I was recently sent this excellent set of references on mold. The very mention of mold sends shivers up people’s spines and makes them start sniffling, worrying about adverse effects. These references help to answer your questions and learn how to deal with your mold problems.
In addition you can find more info on the topic below:
Special thanks to the author of the first reference, Patricia Lawson, Research Coordinator with the National Contractors Association of America, for providing these important documents and links.
People often ask: “why does my house smell?” Often, this is during the winter because your house is sealed up for months, with little fresh air. In fact, with tight, energy efficient homes, this has become even more of an issue. It’s one of the reasons that there’s been a backlash against tight houses.
#1 – your house might not be adequately ventilated
First, let me address the energy efficient house issue. The problem is, many builders and architects don’t understand that a house is a complex system. You can’t just air-seal the house and have a healthy house. That’s why building best-practices call for a certain amount of fresh air circulation. So if you live in a tight house, you want to ensure you have adequate fresh air or your house will get stale and smell. If you don’t know about HRV’s and ERV’s (heat recovery ventilators and energy recovery ventilators) read this short post. Every modern home should have one of these. Once you’ve lived with one, you’ll wonder how you managed without it.
#2 – there might be a dead mouse/animal somewhere Continue reading
When I head out around the countryside, I am frequently dismayed by all the examples of improper construction techniques. “There’s another house that’s going to rot out in a few years” I think to myself.

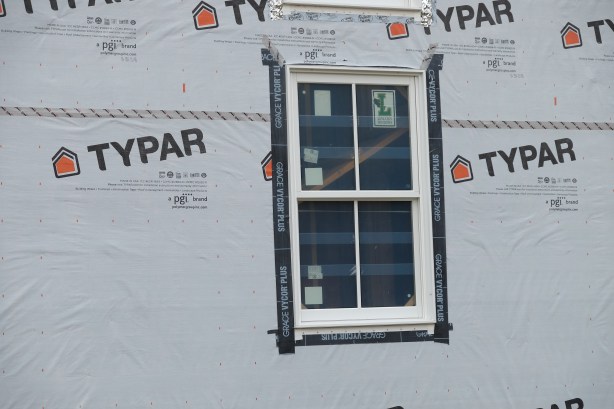

So, when I saw this new construction, I did a double-take. Did the contractor actually properly install the house-wrap (Typar or Tyvek) around the window? Amazing!
Let’s look at what they did right:
- They used Typar house wrap which is generally a better product than Tyvek. But installed correctly, each can do a fine job
- They installed the house wrap horizontally in long, continuous segments. This reduces the number of seams, which are potential failure points.
- They used the Typar tape for the seams. This is a little detail that is often missed. The house wrap is slippery material and using the wrong tape on the seams can lead to failure. Only the factory approved brand should be used whether it be Tyvek or Typar.
- *IMPORTANT* They sliced the wrap above the window and installed the top piece over the window’s nailing flange. This directs water properly. 90% of the installations are done without this detail which leads to water getting under the nailing flange!
- *IMPORTANT* They taped the wrap under the nailing flange and over the bottom sill. Again, this is critical for proper drainage. If water gets behind the window, it drips onto water-impervious Grace Vycor then drains out at the bottom flange. Most installers tape the bottom flange to the house wrap which traps water inside the wall.
So kudos to the builder. This home is much less likely to rot out than 90% of the other new constructions!
After the first article, Matt collected his utility bills and other background information we need to get started. Here it is:
“Colonial 3,300 square feet. 3 adults one child. 2 Electric Heat Pumps: Large one in basement is Payne, Model Number PF1MNB048; Smaller one in mud room for rooms above garage has no name. Just has large number SA11694 and Model Number BCS2M18C00NA1P-1. Thermostat at 72 now and 70 in summer. Consumption Feb 2013 through Jan 2014 – kWh 5800, 4530, 2815, 1684, 1533, 2346, 1334, 1568, 1719, 3023, 5833, 7349”
I don’t even have to make a spreadsheet for this one!
What this tells us
We have a small-medium family in an average sized development home – no red-flags there.
However, the next items contain the keys to solving this mystery.

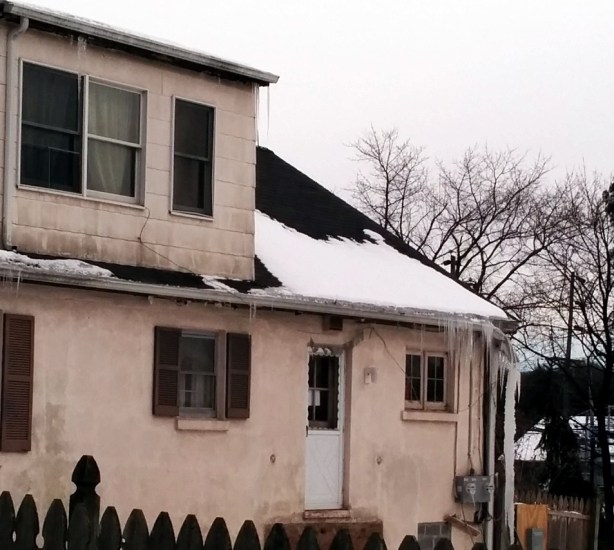

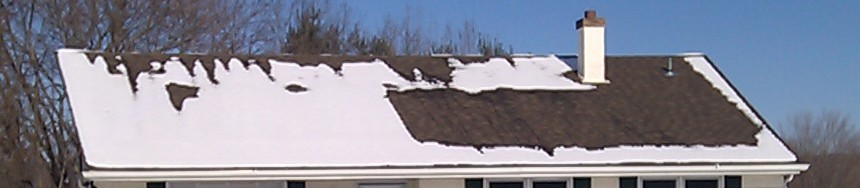

Here’s a winter quickie – icicles are a sign that snow is melting from a hot roof rather than a sunny day.
Since we’ve been talking about DIY energy audits, this is one of the easiest ways of seeing if you’re losing too much energy out your roof. If you’ve got lots of icicles or notice the snow melting unevenly, usually in vertical strips, then you are almost certain to have some major energy loss. Often, this can be fixed quite easily since the icicles and snow melt will tell you where the heat loss is. In fact, this works at least as well as the expensive thermal camera that we use in energy audits. I call it the 30 second energy audit! Continue reading
